Sectional Overhead Doors

Blue Swoosh Reversed

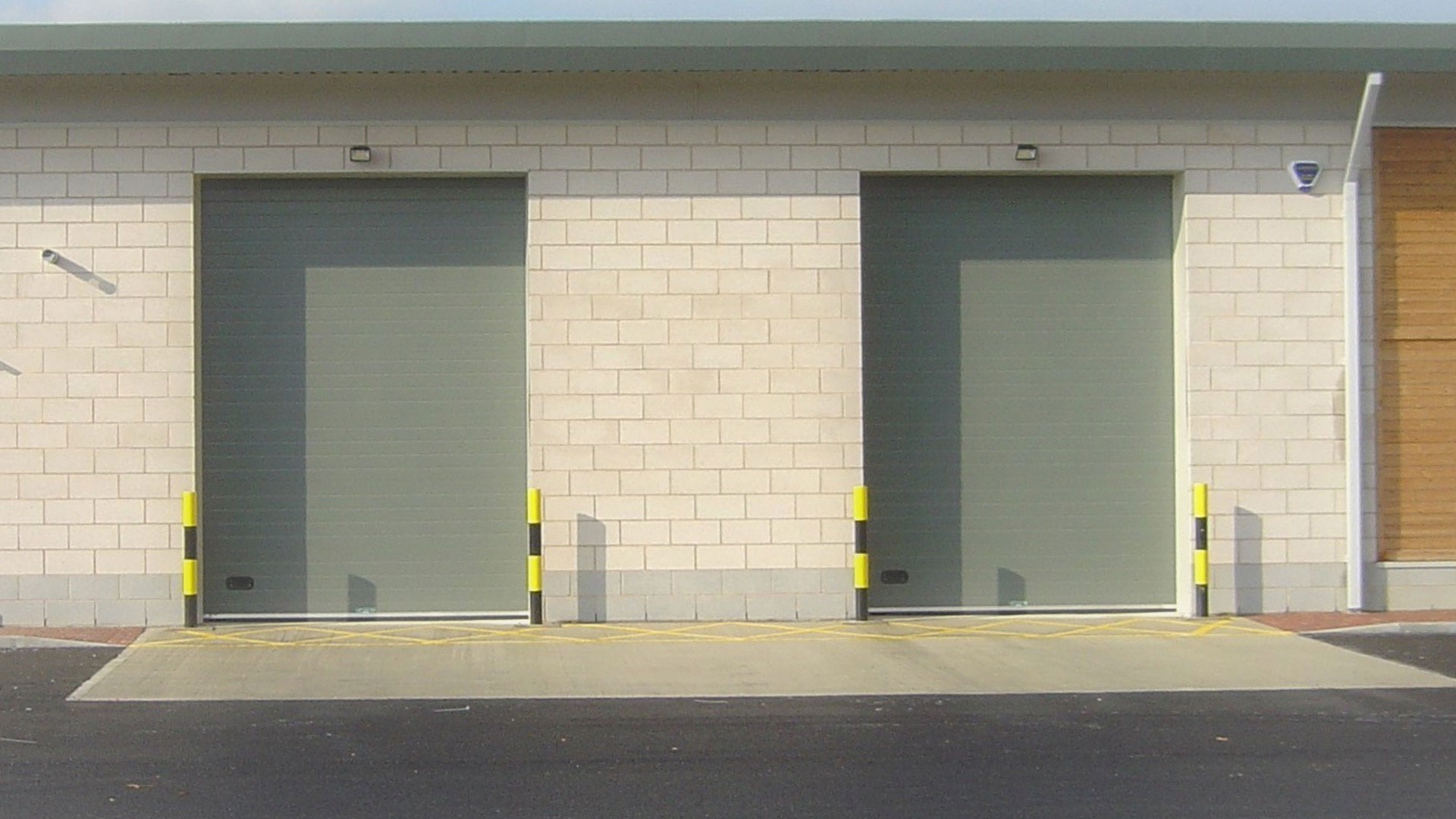

Sectional overhead doors, also known as the up-and-over door, operate in a similar way to a traditional residential garage door.

However, the sectional panels and track mean the door does not swing outwards, – they open vertically, meaning they can open even when a vehicle is parked right up against them.

These reliable doors are able to handle a high level of traffic which, combined with the opening method, makes them an ideal choice for factories, garages and warehouses – or indeed any industrial building where a large number of vehicles are coming in and out every day.

Insulated for temperature and noise control

Our industrial sectional doors are fitted with insulation panels as standard, with thicker panels for temperature controlled rooms available upon request. At standard thickness, this can reduce noise pollution and help maintain a consistent temperature, while thicker panels can keep a sealed room under 0ºC, ideal for food preparation and agricultural use.

Our insulated sectional overhead doors are therefore suitable for a wide range of applications.

Our industrial and commercial sectional overhead doors are available in a range of six polyester finish panels and eleven plastisol finish panels so that you can find something that looks good in your chosen space without compromising on the functionality you need.

We offer a range of opening options for your convenience, including manual, push-button, and automatic provided by either a hand chain or motor.  All our industrial sectional overhead doors are available with safety edges or photocells upon request.

A sectional overhead door is a great way of ensuring noise protection and providing effective insulation. We offer 8cm heavy insulation on request, which successfully maintains temperatures below zero degrees. Our fast-acting overhead doors have been designed by our expert engineers to prioritise safety, security, and functionality.

Key features Specifications Applications Operation Available finishes Gallery
  • Choice of manual, push-button or automatic opening and closing
  • Wicket door for pedestrian access available on request
  • Provides effective insulation and noise protection
  • Anti-fall-back device fitted as standard
  • Available with photo cells on request
  • Available with safety edges on request
  • Standard doors consist of an insulated panel 610mm deep, with a thickness of 40mm
  • Heavy insulation available upon request, with an 80mm thick panel to keep a sealed room below 0ºC

Hand chain door

  • Minimum dimensions: 2000mm x 2000mm
  • Hand chain door maximum dimensions: 4000mm x 4000mm

Single phase 240v motorised door

  • Minimum dimensions: 2000mm x 2000mm
  • Maximum dimensions: 4000mm x 4000mm

Three phase 415v motorised door

  • Minimum dimensions: 2000mm x 2000mm
  • Maximum dimensions: 6000mm x 6000mm

Suitable for use in a range of specialist environments, including:

  • Agricultural
  • Commercial
  • Industrial
  • Retail
  • Insulated
  • High volume
  • Choice of hand chain and motorised doors
  • Motorised overhead doors can be fitted with a standard push button or a fully automatic system
Polyester Finish Panels
  • RAL 9010 Pure WhiteRAL 9002 Bone White
  • RAL 5010 Gention BlueRAL 5010 Gention Blue
  • RAL 8014 Sepia BrownRAL 8014 Sepia Brown
  • RAL 9006 SilverRAL 9006 Silver
  • RAL 3000 Sunset RedRAL 3000 Sunset Red
  • RAL 9002 Bone WhiteRAL 9010 Pure White
Plastisol Finish Panels
  • RAL 6002 Leaf GreenRAL 6002 Leaf Green
  • BS12B21 Khaki GreenBS12B21 Khaki Green
  • BS10E55 Sunflower YellowBS10E55 Sunflower Yellow
  • BS10A05 Goosewing GreyBS10A05 Gooswing Grey
  • BS18B25 Merlin GreyBS18B25 Merlin Grey
  • BS18C39 Azure BlueBS18C39 Azure Blue
  • BS12B27 Olive GreenBS12B27 Olive Green
  • BS04E53 Flame ReBS04E53 Flame Red
  • RAL 5003 Sapphire BlueRAL 5003 Sapphire Blue
  • BS18E53 Cornflower BlueBS18E53 Cornflower Blue
  • BS08B29 Vandyke BrownBS08B29 Vandyke Brown

Make an Enquiry

Have any questions for our engineers, or want a quote for a sectional overhead door? Give us a call or send us a message today, we’ll get back to you asap!
